Medallion Features
Medallion is powered electromechanically with a quiet screw driven actuator that raises and lowers the bed to infinite settings.
The Medallion I uses a pneumatic lift for back elevation whereas the Medallion II uses an electromechanical back lift.
The table has an adjustable padded leg rest that extends to 16.5″ and is integrated with a waste treatment pan underneath.
The treatment pan tray is stored underneath the padded leg rest cover and may be used with or without the leg rest extended.
Our steel pedestal base with built-in counter balancing weights provides a sturdy procedural platform that can be counted on.
The handsome pedestal base allows close access to the patient without encumbrances and corner interference.
Medallion Tables use only the best high grade Healthcare vinyl which is seamless and made for patient comfort and care.
An easy to use, low 12 volt foot control operates the table, which eliminates physician strain and stress.
Each table is complete with a hospital grade, 120 volt, 60 cycle, 12 amp duplex outlet.
Four feet levelers that are screw-type are provided in each of the four corners of the pedestal base.
Adjustable Back – Either Pneumatic or Electromechanical
Integrated Leg Rest and Treatment Pan
turdy Steel Pedestal Base
Paper Dispenser and Paper Cutter
Duplex Outlet and Footpad Control
High-grade Healthcare vinyl
Four Screw-Type Feet Levelers
Specifications for Medallion

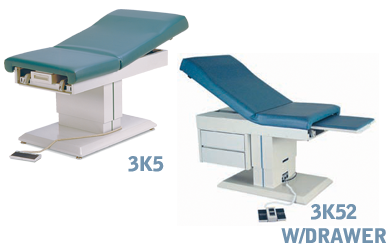

Model #3K5 Medallion I Power Exam Table
Overall Height: 23in. to 37in. (58cm to 94cm)
Overall Width: 29in. (74cm)
Overall Length w/Leg Rest Extended: 72in. (183cm)
Length – Tabletop Only: 55in. (140cm)
Back Rest Range: Horizontal to 85°
Electrical Rating: 120 volt, 60 cycle, 12 amp
Standard: UL Standard 544 – Medical Equipment Professional
Weight: 425lbs. (193kg)
Patient Load Capacity: 400lbs. (181kg)
Model #3K52 Medallion II Power Exam Table
Overall Height: 23in. to 37in. (58cm to 94cm)
Overall Width: 29in. (74cm)
Overall Length w/Leg Rest Extended: 72in. (183cm)
Length – Tabletop Only: 55in. (140cm)
Back Rest Range: Horizontal to 85°
Electrical Rating: 120 volt, 60 cycle, 12 amp
Standard: UL Standard 544 – Medical Equipment Professional
Weight: 425lbs. (193kg)
Patient Load Capacity: 400lbs. (181kg)
Literature for Medallion
Medallion Options
All steel, two drawer unit comes fully assembled to the exam table. (Model #3K411)
Instrument warmer kit (Model #95K18)
Pair of 6 position Stirrups (Model #95K17)
EZ-Flip 10° pelvic tilt (Model # 95K19)
Bierhoff Crutches (Model #95K15)
Vinyl Color Choices
Emerald Dewberry Clamshell Slate Blue Port Red
Finishes
Steel Frame Powder Coat Finish: Chameleon
The following categories are related to Versatility Hi-Lo
Versatility Hi-Lo Features
Versatility is powered electromechanically with a quiet screw driven actuator that raises and lowers the bed to infinite settings.
Steel frame is powder coated Chameleon (Light Gray) which is UV stable and easy to maintain.
One-touch handle easily raises and lowers the pneumatic backrest to the desired angle on the back adjusting table.
The bed of the Versatility is made with 2 inch high density comfort foam over the 3/4″ plywood substrate.
Versatility tables use high grade Healthcare vinyl which is seamless and made for patient care. Five color choices.
Table has unobstructed table base design which enables the practitioner to work close to patients.
Each Versatility table is equipped with a paper roll dispenser as well as a plastic paper cutter.
An easy to use, low 12 volt foot control operates the table, which eliminates physician strain and stress.
Each table is complete with a hospital grade, 120 volt, 60 cycle, 12 amp duplex outlet.
Four feet levelers that are screw-type are provided in each of the four corners of the pedestal base.

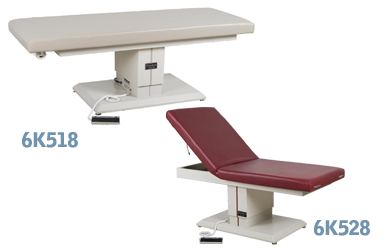

Pneumatic lift adjustable backrest (Model 6K528)
Durable comfort foam construction
Sturdy Steel Pedestal Base
Paper dispenser and paper cutter
Duplex Outlet and Footpad Control
High-grade Healthcare vinyl
Four Screw-Type Feet Levelers
Versatility Hi-Lo Options
All steel, two drawer unit comes fully assembled to the exam table. Choose right or left hand unit for either side of the pedestal, or for both sides. (Model #3K411)
Vinyl Color Choices
Emerald Dewberry Clamshell Slate Blue Port Red
Finishes
Steel Frame Powder Coat Finish: Chameleon
